WOOD LATHE - $5,000 (WEST END NC)
condition:
like new
make / manufacturer:
WOODTEK
model name / number:
N0.1
size / dimensions:
132"X 32" X50"
QR Code Link to This Post
Condition
Used - like new
Usage
Wood
Voltage (V)
230
Heavy cast iron construction, high low-end torque, and a flexible modular design system.
Powered by a 3HP DC drive system with three-speed ranges: 0-600, 0-1200, 0-2000 RPM and dynamic braking.
The 3HP, 15 Amp, Minarik 230V PWM (pulse-width-modulated) DC drive motor maintains a constant speed during heavy turning conditions.
Heavy 2-1/2" diameter spindle shaft, a dynamic load capacity of 14,000 pounds.
Flex-free outboard tool rest locking, surface hardened tool rests.
Lathe beds are made of Meehanite™, a superior casting material produced in a patented controlled under-cooling process that ensures a consistent grade of casting material.
Meehanite™ has internal lubricating agents providing a smother, friction-free surface on the bed ways. The letter "M" embossed on the side of the lathe bed stands for Meehanite™
Tool rests are made of Meehanite™ cast iron and the tops of the rests are surface-hardened to HRC 60 minimizing dents from turning tools.
Variable speed control with a digital tachometer.
Self-ejecting tailstock.
Note: This lathe was very lightly used and in excellent condition. The lathe comes with extra

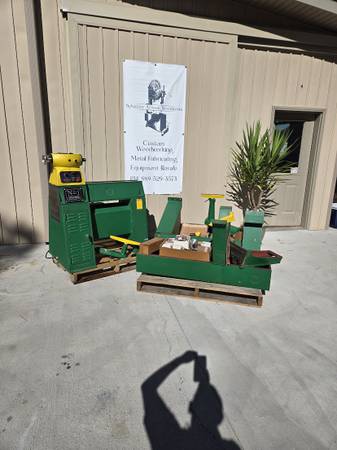

bed extensions, to collectively configure 194" of total bed length. This model ( 962-011 ) the Whole Enchilada, originally came with 132" total bed length. The extra bed sections, was an extra ($900.00) at time of purchase. All accessories shown in photos, and instruction manual included. The lathe is disassembled and palletized for handling. Ready for shipping or pickup. This lathe was over $11,000.00 new.
SPECIFICATIONS:
Motor: 3HP, 230V, 1Ph, PMDC motor with 3HP, 15A Minarik® drive
Speed Ranges: 0-600, 0-1200, 0-2000 RPM.
Inboard swing diameter: 20"
Distance between inboard centers: 38"
Outboard Swing: 36" (33" over tool rest)
Distance between outboard centers: 61"
Spindle threads: 1-1/2" - 8TPI
Spindle height: 45"
Dimensions w/all Modules Assembled: 132" long x 32" wide x 50" high (35" bed height)
Dimensions of Lathe Unit Only: 42" long x 32" wide x 50" high (35" bed height)
Morse taper: #2 MT
Bearings: Double-row
Shaft through-hole: 5/8" diameter
Quill travel: 5"
Indexing: 48 point
Tool post diameter:
Bed Gap: 2-1/2"
Estimated Net Weight: 1,700 lbs.
